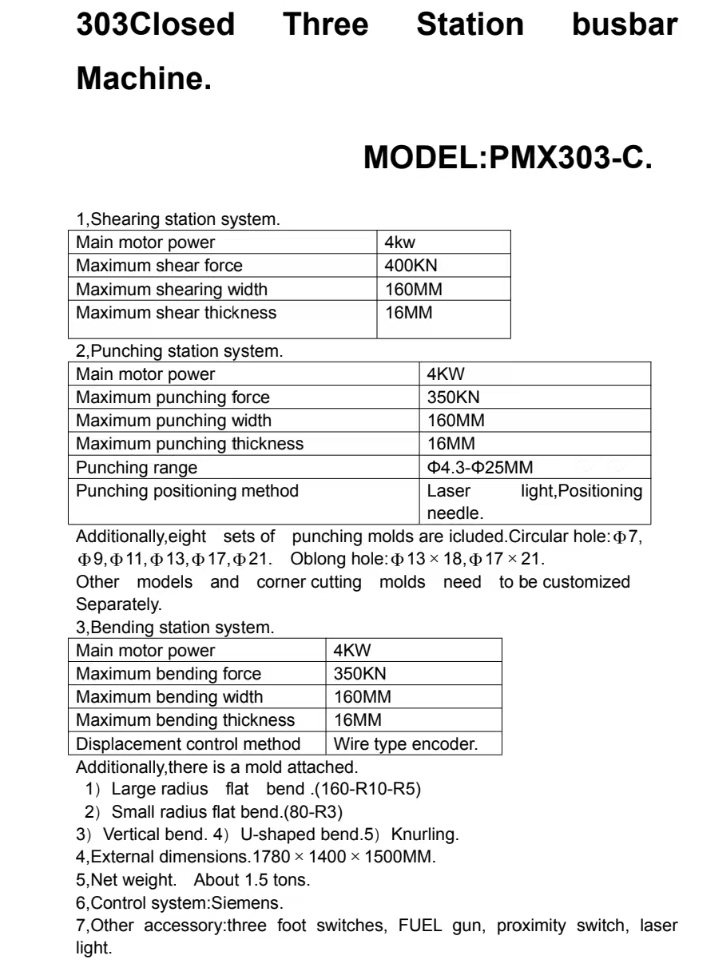

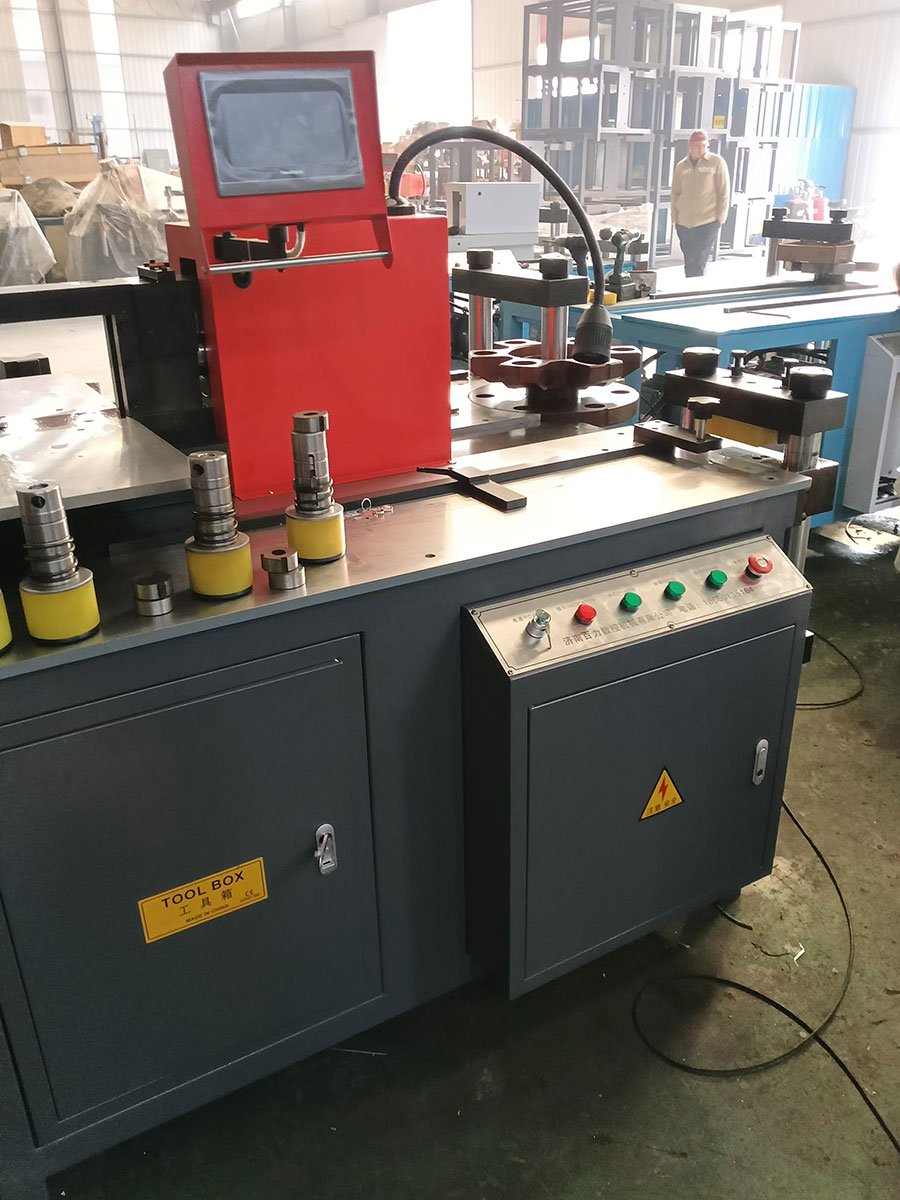

PMX 303 Closed Three Station busbar Machine.
MODEL:PMX303-C
1、Shearing station system
| Main motor power | 4KW |
| Maximum shear force | 400KN |
| Maximum shearing width | 160MM |
| Maximum shear thickness | 16MM |
2、Punching station system
| Main motor power | 4KW |
| Maximum punching force | 350KN |
| Maximum punching width | 160MM |
| Maximum punching thickness | 16MM |
| Punching range | D4.3-D25MM |
| Punching positioning method | Laser light.Positioning needle. |
Additionally, eight set of punching molds are included.Circular hole:D7, D9, D11, D13,D17,D21.Oblong hole:D13*18,D17*21.Other molds and corner cutting molds need to be customized separately.
3、Bending station system.
| Main motor power | 4KW |
| Maximum bending force | 350KN |
| Maximum bending width | 160MM |
| Maximum bending thickness | 16MM |
| Displacement control method | Wire type encoder. |
Additionally,there is mold attached.a、Large radius flat bend.(160-R10-R5).b、Small radius flat bend.(80-R3).c、Vertical bend.d、U-shaped bend.e、Knurling.
4、External dimensions.1780*1400*1500MM.
5、Net weight. About 1.5 tons.
6、Control system.Siemens.
7、Other accessory: Three foot switches. Fuel gun. Proximity switch, Laser light.
